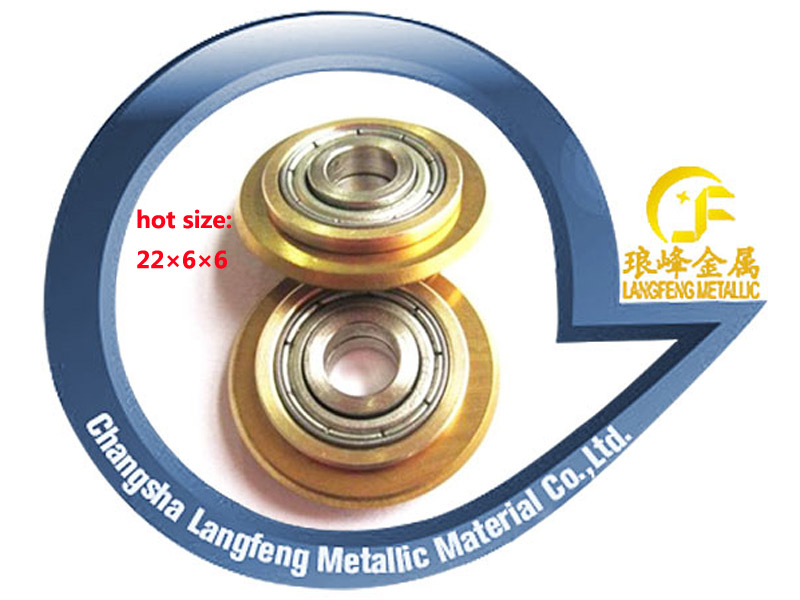

Tungsten carbide tile cutter wheel
-
Application:For cutting a variety of ceramic tile and glass
We're here to help:
Easy ways to get the answers you need.
Langfeng Metallic’s tile cutter wheel standard
牌号 Grade |
硬度 Hardness (HRA) |
密度 Density (g/cm3) |
强度 TRS (N/mm) |
晶粒度 Average grain (um) |
切割寿命 cutting life |
C1 | ≥91.5 | 14.8 | 2200 | 1.00 | ≥2000m |
C2 | ≥91.5 | 13.51 | 2000 | 1.20 | ≥1000m |
C3 | ≥91.5 | 11.41 | 1800 | 1.60 | ≥400m |
C4 | ≥91.5 | 6.10 | 1200 | 1.00 | 150-200m |
Changsha Langfeng Metallic Material Ltd. | |||||||||||
Crabide cutter wheel Type and Grade | |||||||||||
Type | Basic size(mm) | Grade | |||||||||
outside diameter(OD) | tolerance of OD | inside diameter (ID) | tolerance of ID | Thickness | tolerance of Thickness | Angle | HSSC-1 | HSSC-2 | HSSC-3 | HSSC-4 | |
Service life(≥m) | |||||||||||
Φ22×Φ14×2.6 | 22 | ±0.05 | 14 | ±0.05 | 2.6 | ±0.05 | 90° 100° 110° 120° | 2000 | 800 | 400 | 200 |
Φ22×Φ14×2.0 | 22 | ±0.05 | 14 | ±0.05 | 2 | ±0.05 | |||||
Φ22×Φ13×2.0 | 22 | ±0.05 | 13 | ±0.05 | 2 | ±0.05 | |||||
Φ22×Φ12×2.2 | 22 | ±0.05 | 12 | ±0.05 | 2.2 | ±0.05 | |||||
Φ22×Φ10.5×2.0 | 22 | ±0.05 | 10.5 | ±0.05 | 2 | ±0.05 | |||||
Φ22×Φ6×4.6 | 22 | ±0.05 | 6 | ±0.05 | 4.6 | ±0.05 | |||||
Φ22×Φ6×2.0 | 22 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
Φ20×Φ5×3.0 | 20 | ±0.05 | 5 | ±0.05 | 3 | ±0.05 | |||||
Φ18×Φ6×3.0 | 18 | ±0.05 | 6 | ±0.05 | 3 | ±0.05 | |||||
Φ18×Φ6×3.8 | 18 | ±0.05 | 6 | ±0.05 | 3.8 | ±0.05 | |||||
Φ16×Φ6×4.9 | 16 | ±0.05 | 6 | ±0.05 | 4.9 | ±0.05 | |||||
Φ16×Φ6×3.0 | 16 | ±0.05 | 6 | ±0.05 | 3 | ±0.05 | |||||
Φ16×Φ6×2.0 | 16 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
Φ16×Φ6×1.5 | 16 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
Φ16×Φ4×3.0 | 16 | ±0.05 | 4 | ±0.05 | 3 | ±0.05 | |||||
Φ15×Φ6×2.9 | 15 | ±0.05 | 6 | ±0.05 | 2.9 | ±0.05 | |||||
Φ15×Φ6×2.0 | 15 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
Φ15×Φ6×1.5 | 15 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
Φ14×Φ6×1.5 | 14 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
Φ13.5×Φ6×2.0 | 13.5 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
Φ13.5×Φ6×1.5 | 13.5 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
Φ13.5×Φ6×1.0 | 13.5 | ±0.05 | 6 | ±0.05 | 1 | ±0.05 | |||||
Φ12×Φ3×3.0 | 12 | ±0.05 | 3 | ±0.05 | 3 | ±0.05 | |||||
Φ10×Φ4×3.0 | 10 | ±0.05 | 4 | ±0.05 | 3 | ±0.05 | |||||
Φ8×Φ1.5×1.1 | 8 | ±0.05 | 1.5 | ±0.05 | 1.1 | ±0.05 | |||||
Φ7×Φ1.9×1.2 | 7 | ±0.05 | 1.9 | ±0.05 | 1.2 | ±0.05 | |||||
Φ6.4×Φ1.5×1.3 | 6.4 | ±0.05 | 1.5 | ±0.05 | 1.3 | ±0.05 | |||||
Can be produced according to customer requirements |
